Blince hydraulic motor Can perfect replace:
Danfoss: OMM/OMP/OZ/OMR/OK/OMH/OMS/OMT/OMV orbital motor
Eaton: J (129-) series, H(101-) series, S(103-) series, T(158-)series, 2000(104-) series, 6000 series orbit motor
M+S : MM,MLHM/MP,MLHP/ MR,MLHR/ MH,MLHH/ MS,MLHS/ MT,MLHT/ MV,MLHV hydraulic motor.
White: MP/RS/MR/RG/HB/CE/RE series hydraulic motor
Parker: TE and TG series hydraulic motor

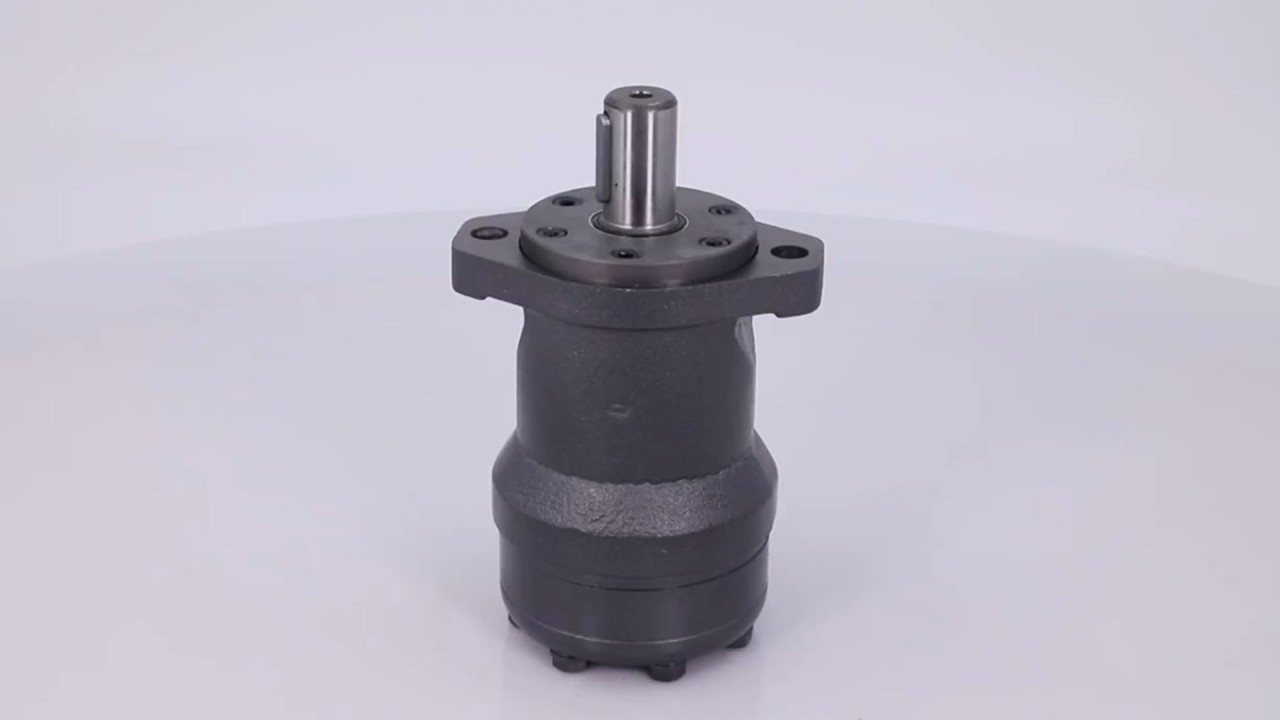

Blince OMS OMSY replace EATON 2k 2000 series 104 106 Brevini HR series MS MLHS Hydraulic Orbital Motor
OMSY New seriesmotor adapt the advanced Geroler gear set designed with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic features:
Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
2. The output shaft adapts in tapered roller bearing that permit high axial and radial forces. The case can offers capacities of high pressure and high torque in the wide of applications.
3. Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
4. The new series motor is suitable for vehicles with greater loads and pressure drop.
Product application:
Blince hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches, Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers.
OMSY series: | ||||||||
Type | 80/100 | 125/160 | 200 | 250 | 315 | 400 | 475 | |
Geometric displacement （cm²/rev.） | 80.6/100.8 | 125/154 | 194 | 243 | 311 | 394 | 475 | |
Max.speed （rpm） | cont. | 800/748 | 600/470 | 375 | 300 | 240 | 185 | 155 |
int. | 988/900 | 720/560 | 450 | 360 | 280 | 225 | 185 | |
Max.torque (N*m) | cont. | 225/290 | 365/485 | 586 | 708 | 880 | 880 | 910 |
int. | 305/390 | 480/590 | 705 | 860 | 1000 | 980 | 990 | |
Max.output (kw) | cont. | 16/18 | 18/18.1 | 18.1 | 18 | 17 | 11 | 9 |
int. | 20/22 | 23/25 | 24 | 23.8 | 20.2 | 12 | 11 | |
Max.pressure drop (MPa) | cont. | 20.5 | 20.5/21 | 21 | 20 | 20 | 16 | 14 |
int. | 27.5 | 27.5/26 | 25 | 25 | 24 | 19 | 15 | |
Max.flow (L/min) | cont. | 65/75 | 75 | 75 | 75 | 75 | 75 | 75 |
int. | 80/90 | 90 | 90 | 90 | 90 | 90 | 90 | |
Max.inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
Weight (kg) | 9.8/10 | 10.3/10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | |
Blince hydraulic motor Can perfect replace:
Danfoss: OMM/OMP/OZ/OMR/OK/OMH/OMS/OMT/OMV orbital motor
Eaton: J (129-) series, H(101-) series, S(103-) series, T(158-)series, 2000(104-) series, 6000 series orbit motor
M+S : MM,MLHM/MP,MLHP/ MR,MLHR/ MH,MLHH/ MS,MLHS/ MT,MLHT/ MV,MLHV hydraulic motor.
White: MP/RS/MR/RG/HB/CE/RE series hydraulic motor
Parker: TE and TG series hydraulic motor
