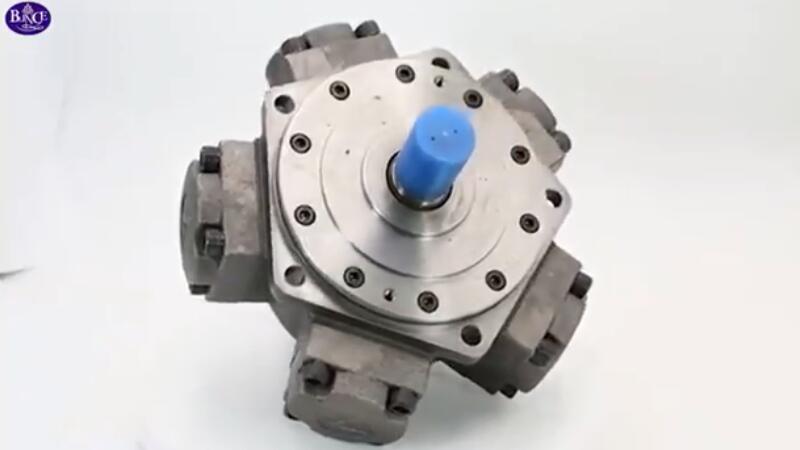

ZM Series radial piston hydraulic motor are such kinds of low speed high torque motors with crankshaft and connecting rod. It has been widely applied in all kinds of hydraulic transmission system such as plastic injection machine, ship and deck machinery, construction machinery and equipment, hoist and transport vehicle, heavy metallurgical machinery, petroleum and mine machine, light industry equipment, lath, light industry equipment and drilling machine etc.
Blince radial piston motor perfect alternative to
*Intermot NHM/IAM
*Calzoni MRC/MRCN
*Staff STF
*Other brands of motor.
| Model | ZM1-(63~160) | ZM2-(100~280) | ZM3-(175~400) | ZM6-(400~750) | ZM8-(600~1000) | ZM11-(700~1300) | ZM16-(1400~2400) | ZM31-(2500~5000) | ZM70-(5000~7000) | ZM100-(6300~10000) |
| Displacement (ml/r) | 64~159 | 113~276 | 181~380 | 397~754 | 617~1000 | 682~1301 | 1413~2267 | 2553~4828 | 4946~7122 | 6758~10016 |
| Rated pressure (Mpa) | 16~14 | 16~12 | 16~12 | 16~14 | 16~12 | 16~14 | 16~14 | 18~14 | 16~14 | 16~14 |
Max.pressure (Mpa | 22~20 | 22~18 | 22~18 | 22~18 | 22~18 | 22~18 | 22~18 | 25~20 | 22~20 | 22~20 |
| Rated torque (N.m) | 150~326 | 264~484 | 424~667 | 939~1561 | 1444~1755 | 1596~2664 | 3343~4693 | 6722~9887 | 11450~14427 | 15301~19843 |
Unit torque (N.m/Mpa) | 9~23 | 17~40 | 26~56 | 59~111 | 90~146 | 101~192 | 209~335 | 373~706 | 716~1030 | 956~1417 |
| Max.speed (r/min) | 450~280 | 350~280 | 350~250 | 320~280 | 280~200 | 280~200 | 250~180 | 200~160 | 125~100 | 100~80 |
| Rated power (KW) | 6~8 | 8~12 | 13~15 | 27~31 | 36~31 | 40~47 | 74~75 | 120~141 | 120~121 | 128~133 |
| The above data is obtained from actual measurement, to ensure that the performance is not lower than that of the same type of series products | ||||||||||
| If you have any questions, please contact our customer service. During the purchase process, we can meet all your needs. For hydraulic equipment, please look for Blince！ | ||||||||||
