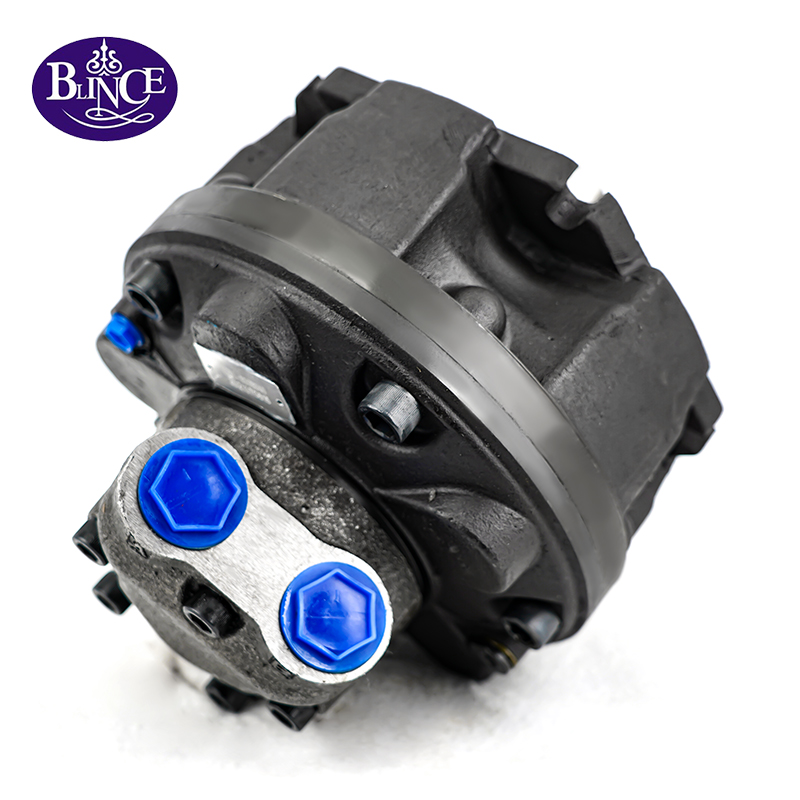

Ld Series Low Speed High Torque Radial Piston Motor

LD series is one kind of low speed high torque radial piston hydraulic motor. It can be widely applied in petroleum industry, chemical industry, mining, shipping, construct-ing machinery, especially for plastic injection molding machinery, hydraulic winch, transmission etc.

Blince hydraulic radial piston motor LD.pdf Download

Equilvement: Intermot NHM, Calzoni STF MCR,JMDG,SAI

Model	Displacement	Pressure		Torque		Speed range
Model	Displacement	Rated	Max	Rated	N.m/Mpa	Speed range
LD 1-63	77	25	32	248	11	15-1500
LD 1-80	91	25	32	335	13	15-1250
LD 1-100	96	25	32	355	14	15-1000
LD 1-110	113	25	32	419	17	15-1000
LD 1-125	126	20	25	371	19	15-1000
LD 1-140	138	20	25	410	20	15-1000
LD 1-160	156	16	20	376	24	15-1000
LD 1-200	196	16	20	464	19	15-1000

LD 2 radial piston motor

Model	Displacement	Pressure		Torque		Speed range
Model	Displacement	Rated	Max	Rated	N.m/Mpa	Speed range
LD2-100	113	25	32	419	17	15-1250
LD2-125	138	25	32	512	20	15-1250
LD2-150	159	25	32	588	24	15-1000
LD2-175	180	20	25	532	27	15-1000
LD2-200	207	20	25	611	31	8-800
LD2-250	235	16	20	556	35	8-630
LD2-280	276	16	20	653	41	8-500

LD 3 radial piston motor

Model	Displacement	Pressure		Torque		Speed range
Model	Displacement	Rated	Max	Rated	N.m/Mpa	Speed range
LD3-175	181	25	32	670	27	8-1000
LD3-200	201	25	32	743	30	8-800
LD3-220	222	25	32	819	33	8-800
LD3-250	254	20	20	752	38	8-630
LD3-300	289	20	20	856	43	8-500
LD3-350	340	20	20	1000	50	8-400
LD3-400	380	18	22.5	1008	56	8-350

LD6 radial piston motor

Model	Displacement	Pressure		Torque		Speed range
Model	Displacement	Rated	Max	Rated	N.m/Mpa	Speed range
LD 6-400	397	25	32	1469	59	5-630
LD 6-450	452	25	32	1672	67	5-630
LD 6-500	491	20	25	1451	73	5-500
LD 6-600	594	20	25	1756	88	4-500
LD 6-700	683	16	20	1616	101	4-400
LD 6-750	754	16	20	1785	112	4-320

LD 8 radial piston motor

Model	Displacement	Pressure		Torque		Speed range
Model	Displacement	Rated	Max	Rated	N.m/Mpa	Speed range
LD 8-700	710	25	32	2626	105	4-400
LD 8-800	810	20	25	2396	120	4-400
LD 8-900	889	20	25	2629	131	3-350
LD 8-1000	1000	16	20	2366	148	3-300

LD 11 radial piston motor

Model	Displacement	Pressure		Torque		Speed range
Model	Displacement	Rated	Max	Rated	N.m/Mpa	Speed range
LD 11-700	707	25	32	2612	104	4-400
LD 11-800	784	25	32	2899	116	4-400
LD 11-900	894	25	32	3306	132	4-400
LD 11-1000	981	20	25	2902	145	3-320
LD 11-1100	1104	20	25	3265	163	3-320
LD 11-1200	1234	16	20	2929	182	3-320
LD 11-1300	1301	16	20	3079	192	3-250

LD 16 radial piston motor

Model	Displacement	Pressure		Torque		Speed range
Model	Displacement	Rated	Max	Rated	N.m/Mpa	Speed range
LD 16-1400	1413	25	32	5224	209	2-400
LD 16-1600	1648	20	25	4874	244	2-400
LD 16-1800	1815	20	25	5367	268	2-350
LD 16-2000	2035	18	22.5	5416	301	2-350
LD 16-2400	2267	16	20	5364	335	2-250

LD 31 radial piston motor

Model	Displacement	Pressure		Torque		Speed range
Model	Displacement	Rated	Max	Rated	N.m/Mpa	Speed range
LD 31-2500	2553	25	32	9438	378	2-200
LD 311-2800	2680	20	25	7935	397	1-200
LD 31-3000	3063	20	25	9057	453	1-200
LD 31-3150	3218	20	25	9518	476	1-160
LD 31-3500	3561	20	25	10530	527	1-160
LD 31-4000	4153	18	22.5	11053	614	1-160
LD 31-4500	4522	16	20	10698	669	1-160
LD 31-5000	4828	16	20	11423	714	1-160

LD 70 radial piston motor

LD 70-5000	4968	20	25	14626	731	1-160
LD 70-5400	5452	20	25	16125	806	1-160
LD 70-6000	5984	20	25	17697	885	0.5-125
LD 70-6300	6540	18	22.5	17408	967	0.5-125
LD 70-7000	7122	16	20	16849	1053	0.5-125
